Trying NicCLIM v2 (executing command lists, applying host lisp)

This is about the new version of my Common Lisp Interface Manager (using McCLIM),

NicCLIM map editor on itch.io.

NicCLIM v2 mainly adds

  1. execute-list which believes cur1 to be a list of commands, and tries to execute them with lisp’s dolist.
  2. com-apply and com-funcall which apply and funcall the cur1 cursor to the current x y map cell.
  3. com-change-player, com-gets and com-setsgets: the frame now has an active player symbol. com-gets gets cur1 from the plist of that symbol, and com-setsgets stores cur1 in cur2’s get.

There are additional utilities like doas-list which combines com-change-player and com-execute-list, not pictured here.

My Own Setup

• (setq inferior-lisp-program "ecl")
• (slime)
• (setq eepitch-buffer-name "*slime-repl ECL*")

(ensure-directories-exist #p"~/GAME/")

(uiop:chdir "~/GAME/")
(uiop:chdir "~/GAME/")

(rect-file "TEST.TXT" 3 2 ())

(enclose-map "TEST.TXT")

Note that rect-file appends if TEST.TXT already exists. TEST.TXT anyway:

NIL	NIL	NIL
NIL	NIL	NIL

anything with lists, or nothing, both work

GUI examples

com-execute-list

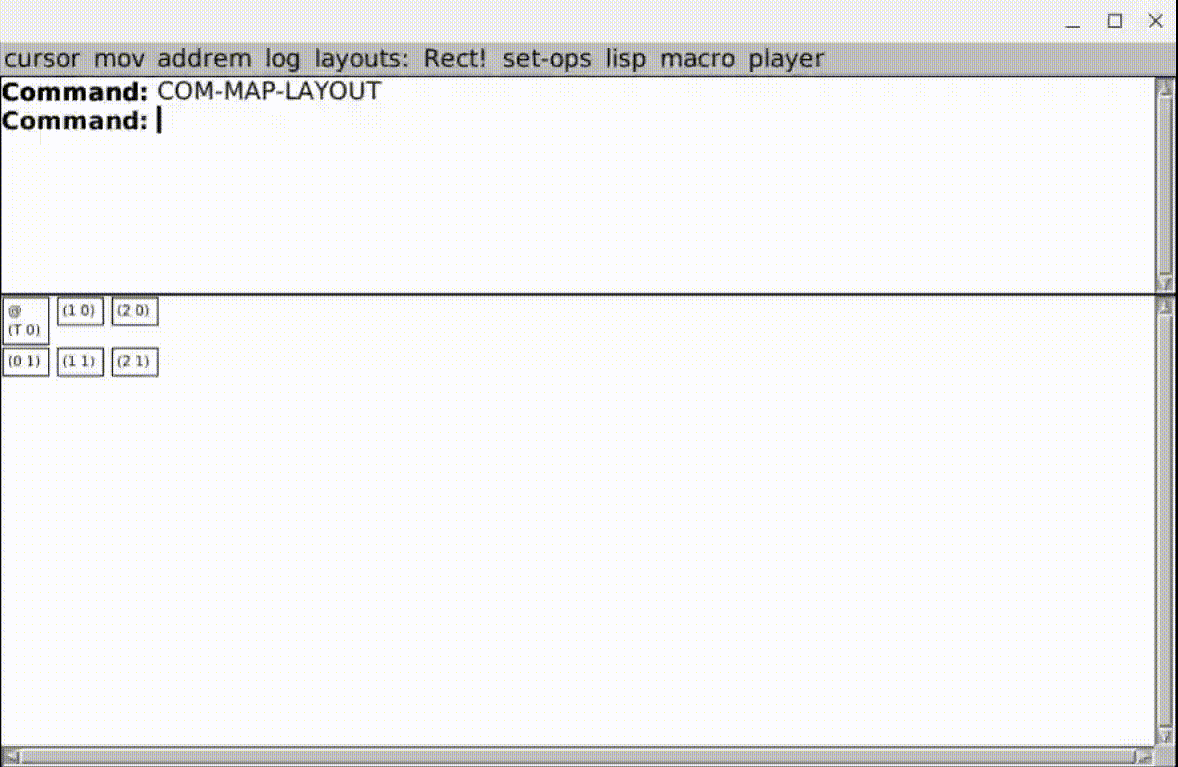

Here we set cur1 to a (list of commands) and call Execute List (autocompleted). The commands go down (COM-J), right (COM-L) and then push cur1 (which was the list of commands): ((COM-J) (COM-L) (PUSH-CUR1)).

So we can execute macro CLIM command lists in NicCLIM v2.

com-apply and com-funcall

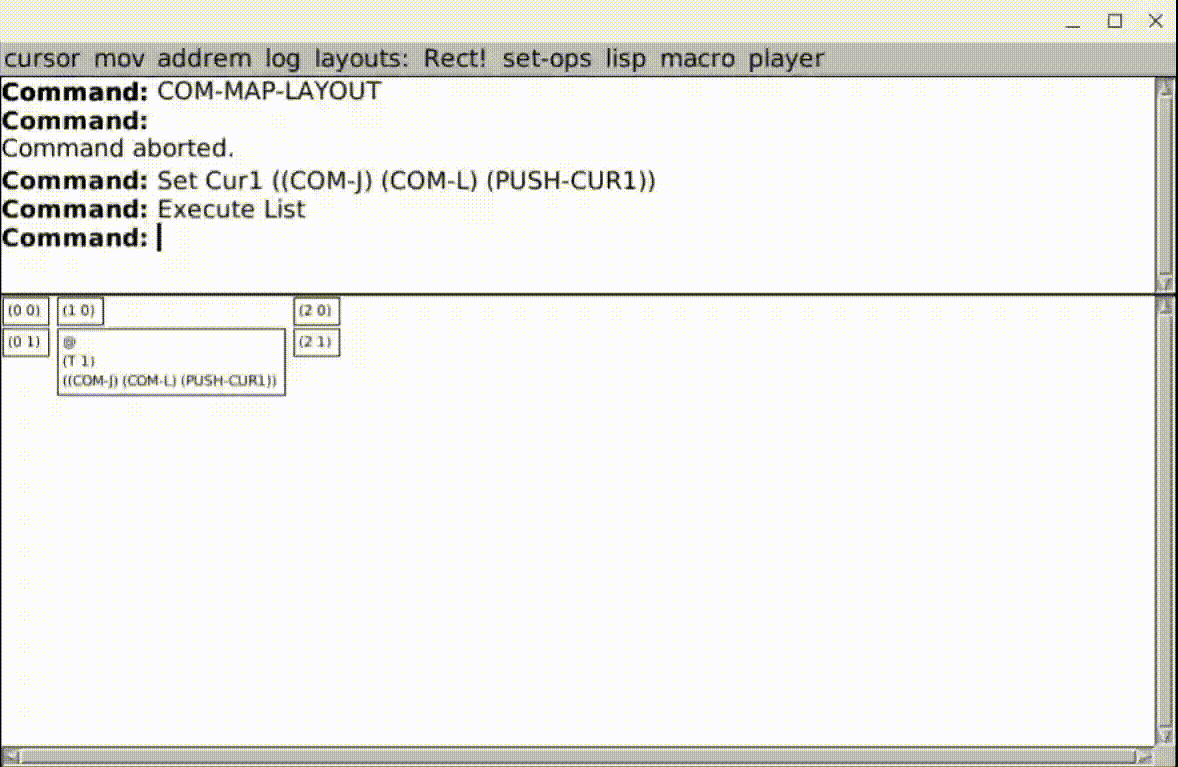

Here we push 4 and 5 to one of the map cells, set cur1 to +, then issue the command apply. We then push cur1 into the cell, seeing that it was 9. We also try funcall with car which seems important, as does copy-list.

change player, setsgets and gets

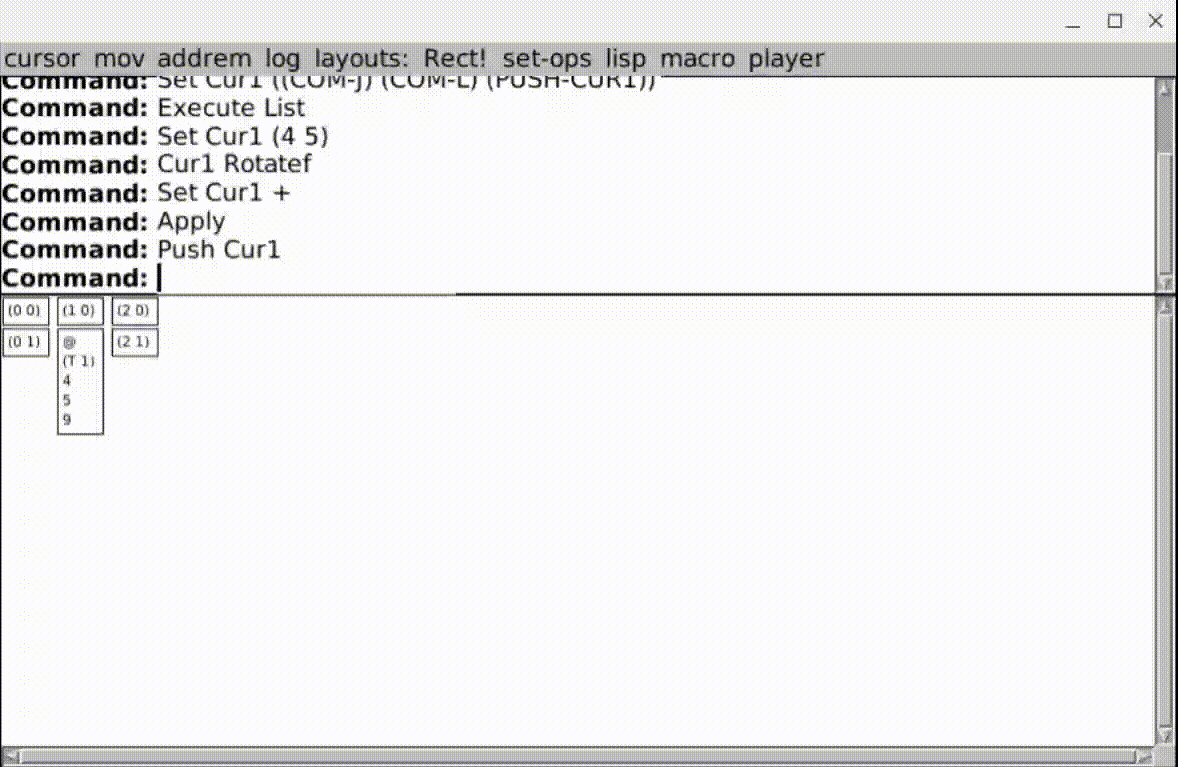

We needed an idea of registers. I chose to add an active player (symbol) to the map editor, and use their symbol-plist to store (setsgets) and retrieve (gets) cursor values. The GIF is a little confusing, so here’s what happens:

  1. change player to zaphod. Zaphod has no :last-x or :last-y so the cursor is sent to 0,0.
  2. Set Cur1 FOO in so many words.
  3. Swap - now cur2 is FOO and cur1 is NIL again.
  4. Set Cur1 BAR, and Swap - Now cur1 is FOO and cur2 is BAR.
  5. Setsgets - Now (get 'zaphod 'bar) is FOO. I.e. cur2 is the key and cur1 is the value.
  6. Push Cur1 - still FOO and step right (L)
  7. Gets, Push Cur1 - NIL: This was (get 'zaphod 'foo) and step right again
  8. Swap, Gets, Push Cur1 - this was FOO. We swapped BAR into cur1 and got the cur1 from Zaphod, whose value writes over cur1. We stored FOO under Zaphod’s BAR a moment ago.

Conclusions

In my heart of hearts, this was modeled after Bill Joy’s VI (which DM tells us was designed with investigation of other screen editors including emacs). [Edit: somewhat improved].

Firstly, in VI the @ command performs a list of VI command actions. In our case, execute-list (hotkey meta- shift- b but who’s counting) executes cur1, hopefully a list of CLIM command objects (basically lists of command names and arguements).

Secondly, where VI has lisp mode which I have seen at least somewhere has the notice “THIS WILL NEVER BE IMPLEMENTED”, NicCLIM offers apply and funcall with cur1’s value and the map cursor’s list as arguements. This is the access provided to the host lisp.

Thirdly, where VI allows us to kill and yank to and from registers using the " prefix command, NicCLIM v2 defines an active player symbol, with gets and setsgets (i.e. get and put) to the active player symbol.

I’m going to try homing my lisp programming in these for a while- one challenge is that map files are currently only acceptable lisp files if every cell is construed to be com-funcalled with cur1=eval, which clearly loses everything three dimensional and hyperconnecting about the NicCLIM working environment, though it is appealling to be able to ‘deploy’ somewhat unexciting map files as regular lisp files. I dunno, what do you think.

NicCLIM v2 will have some more content patches (like the keyboard layout layout we worked on before), and it needs a use-from-lisp example like this one.

Lastly, quickly about threading- I thought about introducing threading with players, but it’s easy to get tripped up as to what *package* is currently going to be with CLIM and multithreading. Furthermore, the primary contribution of CLIM viz threading is to syncronize execution requests, since asyncronously sent commands are linearized as they pass through the running application-frame’s threadsafe command queue. So multithreading goes elsewhere.

Fin.

Talk on the Mastodon as always please. I for one am interested in though a bit nervous about feedback from DM (and you.).
