A minimal GUI keyboard display in McCLIM common lisp interface manager

(defparameter *approximate-keyboard*
  '(((1) (2) (3) (4) (5) (6) (7)  (8)   (9)   (0))
    ((q) (w) (e) (r) (t) (y) (u)  (i)   (o)   (p))
    ((a) (s) (d) (f) (g) (h) (j)  (k)   (l)  (|;|))
    ((z) (x) (c) (v) (b) (n) (m) (|,|) (|.|) (|/|))))

In at least some cases of laptop keyboard, this is pretty close to what you’ve got alphanumerically; I expect one’s fingers hang around some of these keys. It’s going to be a little ugly but I wanted to do a quick keystrokes (i.e. shortcuts/hotkeys) display for my NicCLIM map editor, which in its upcoming version 2 now has lots of keyboard accelerators as I guess we’ll see in another moment.

I guess you’re reasonably set up so the next two lines make sense. Otherwise: my lisp intro, McCLIM’s git README.

(require :mcclim)
(in-package :clim-user)

An application-frame with that keyboard.

I figure it should go in a slot of the frame.

(define-application-frame key-frame ()
  ((keyboard :initarg :keyboard))
  (:pane :application :display-function 'display-keyboard)
  (:default-initargs
   :keyboard  '(((1) (2) (3) (4) (5) (6) (7)  (8)   (9)   (0))
		((q) (w) (e) (r) (t) (y) (u)  (i)   (o)   (p))
		((a) (s) (d) (f) (g) (h) (j)  (k)   (l)  (|;|))
		((z) (x) (c) (v) (b) (n) (m) (|,|) (|.|) (|/|)))))

The :display-function 'display-keyboard

(defun display-keyboard
    (frame pane)
  (with-slots
	(keyboard)
      frame
    (formatting-table
	(pane)
      (loop :for row :in keyboard :do
	(formatting-row
	    (pane)
	  (loop
	    :for cell :in row :do
	      (formatting-cell
		  (pane)
		(updating-output
		    (pane)
		  (surrounding-output-with-border
		      (pane)
		    (with-text-style
			(pane
			 (make-text-style :sans-serif :roman :tiny))
		      (loop
			:for symbol :in cell
			:for hack := nil :then (fresh-line pane) :do
			  (present symbol 'symbol
				   :stream pane))))))))))))

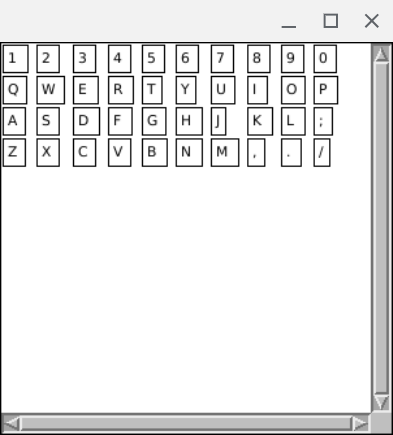

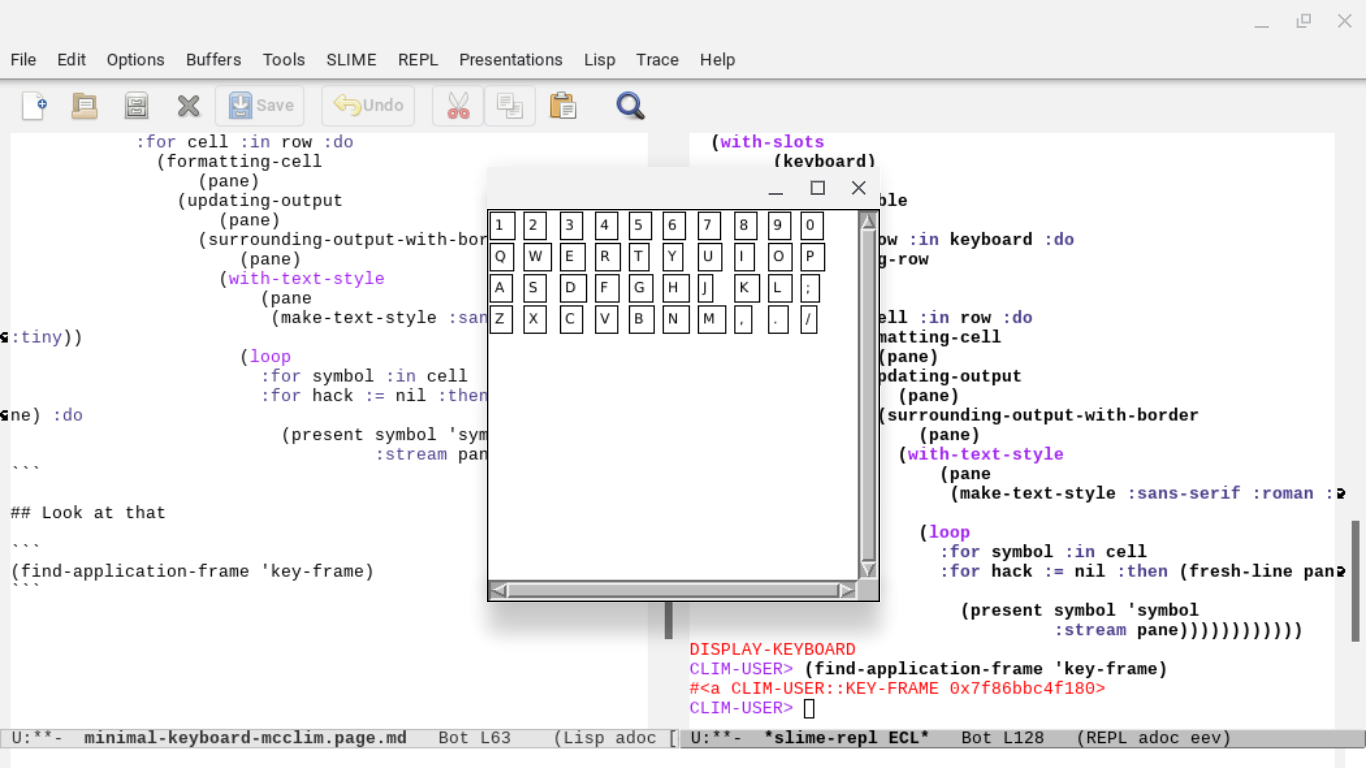

Look at that

(find-application-frame 'key-frame)

Could be worse for the defaults.

Changing the key text

So we absolutely do not want to deface the intuitive keyboard layout list. What I have is a list of keyboard accelerator associated commands. Since each keyboard key is unique, I guess we can just use loop…nsubst.

My new nicclim shortcuts (listen, I program experimentally)

(defparameter *v2-nicclim-shortcuts*
  '(((b) (c-s-b execute list))
    ((q) (c-s-q funcall))
    ((w) (c-s-w apply))
    ((e) (c-s-e gets))
    ((r) (c-s-r setsgets))
    ((t) (c-s-t change player))
    ((a) (c-s-a extract player))
    ((s) (c-s-s doas))
    ((d) (c-s-d doas list))
    ((c) (c-s-c rect union))
    ((z) (c-s-z rect intersection))
    ((x) (c-s-x rect difference))
    ((f) (c-s-f cur1 rotatef))
    ((v) (c-s-v note location))))

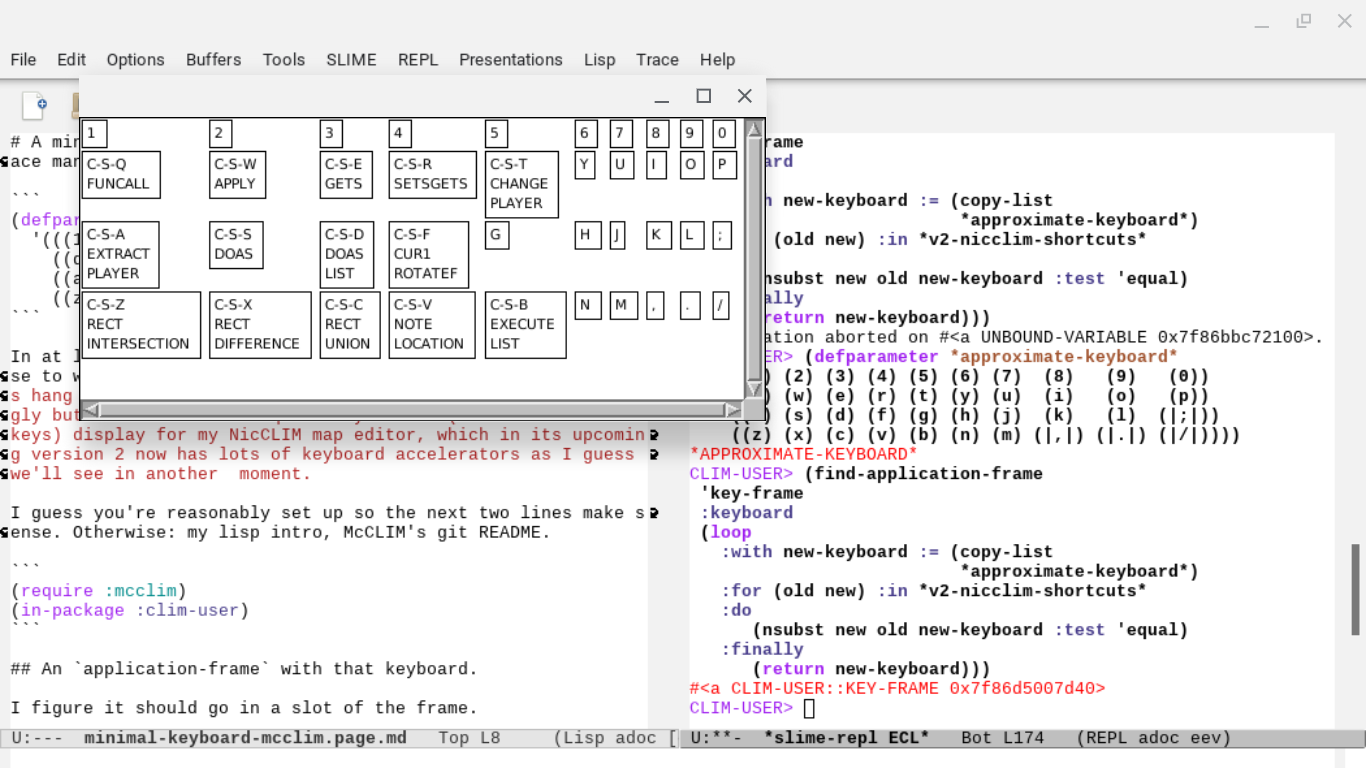

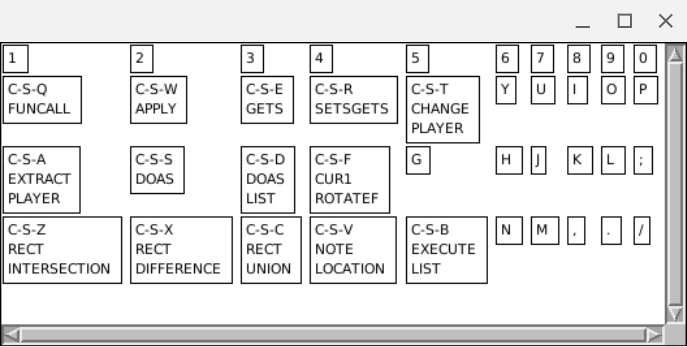

Open the same frame with these changes nsubstituted

(find-application-frame
 'key-frame
 :keyboard
 (loop
   :with new-keyboard := (copy-list
			  *approximate-keyboard*)
   :for (old new) :in *v2-nicclim-shortcuts*
   :do
      (nsubst new old new-keyboard :test 'equal)
   :finally
      (return new-keyboard)))

Conclusion

I can’t say we did anything profoundly deep, but it worked like I thought it would- first, the realistically laid out list datastructure (my friend notptr says they normally write their game maps like this in the first place, so at least someone does it), then using a keyboard arguement with common lisp’s loop and nsubst to add keyboard accelerator descriptions.

The common lisp interface manager spec’s dynamic table resizing did what I hoped it would do. I am not contending I should win any particular awards for graphic design. Maybe you will.

If you want to take the next step with McCLIM because this simple example only whet your voracious appetite, the next thing to do is to make the table cells sensitive-inferiors (when choosing a command for example).

Fin.
