Emacs eev and common lisp McCLIM

• • «.aside» (to “aside”)
• • «.outside emacs» (to “outside emacs”)
• • «.inside emacs» (to “inside emacs”)
• • «.clim-user» (to “clim-user”)
• • «.defining an application-frame» (to “defining an application-frame”)
• • «.making a frame» (to “making a frame”)
• • «.starting a frame» (to “starting a frame”)
• • «.in the gui» (to “in the gui”)
• • «.after killing emacs» (to “after killing emacs”)
• • «.fin» (to “fin”)

I have a particular fantasy idiom for using McCLIM inside emacs. Since McCLIM uses a swank server, and a swank server handles multiple connections, we can start McCLIM outside of emacs, then slime-connect emacs to that external server. The fantasy aspect is that our creations from inside emacs will survive kill-emacs in the external lisp image, which can be hooked into again by a later emacs. It’s a nascent idea.

• McCLIM on Codeberg
• Jackdaniel’s lisp blog
• The Common Lisp Interface Manager CLIM II specification
• Franz’ (proprietary implementation) reference documentation
• Lispworks’ (proprietary implementation) reference documentation

Aside - Franz Inc open sourced their CLIM 2 in 2016?

• • «aside» (to “.aside”)

I found it while looking up links. On github though!

• https://github.com/craigl64/clim2

Strictly outside of emacs

• • «outside emacs» (to “.outside emacs”)

and inside your shell, I guess. This is not for eev (I guess it would work in (eepitch-shell) but that would be inside emacs).

ecl
(require "asdf")
(asdf:load-system :mcclim)
(asdf:system-source-directory :swank)
(merge-pathnames #p"start-swank.lisp" *)
(load *)

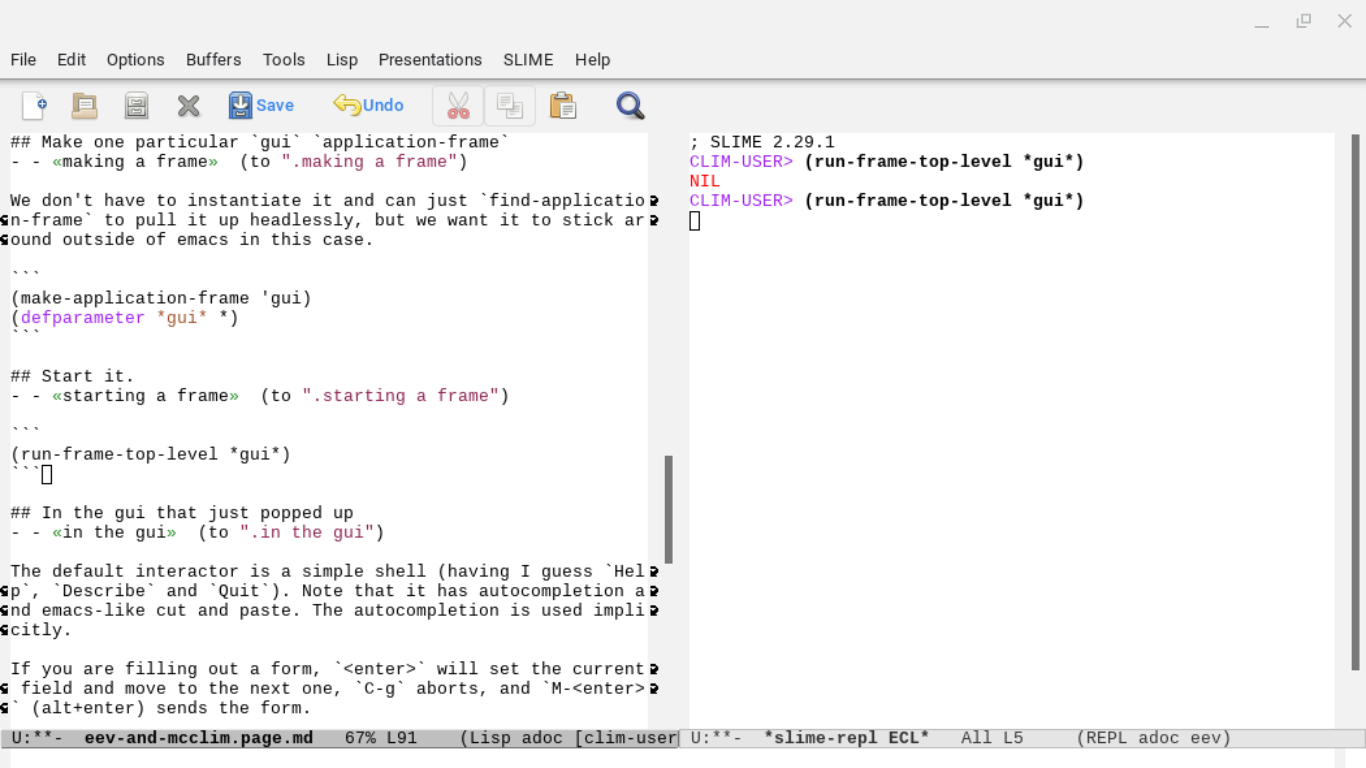

Strictly inside of emacs - connect to mcclim’s swank

• • «inside emacs» (to “.inside emacs”)

Now we are happily using eev eepitch.

 (eepitch-shell)
 (eepitch-kill)
 (slime-connect "localhost" 4005)
 (setq eepitch-buffer-name "*slime-repl ECL*")

Remember that we loaded mcclim already in the external lisp.

eepitch into clim-user

• • «clim-user» (to “.clim-user”)

In lisp, we often make -user packages to absorb user code. This user package is what the package developer expects their users to basically experience.

(in-package :clim-user)

Defining an application-frame

• • «defining an application-frame» (to “.defining an application-frame”)

(define-application-frame gui () ())

Make one particular gui application-frame

• • «making a frame» (to “.making a frame”)

We don’t have to instantiate it and can just find-application-frame to pull it up headlessly, but we want it to stick around outside of emacs in this case.

(make-application-frame 'gui)
(defparameter *gui* *)

Start it.

• • «starting a frame» (to “.starting a frame”)

(run-frame-top-level *gui*)

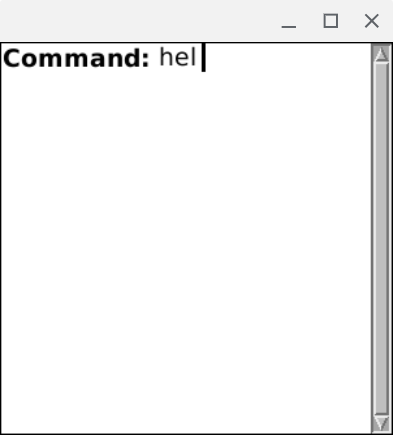

In the gui that just popped up

• • «in the gui» (to “.in the gui”)

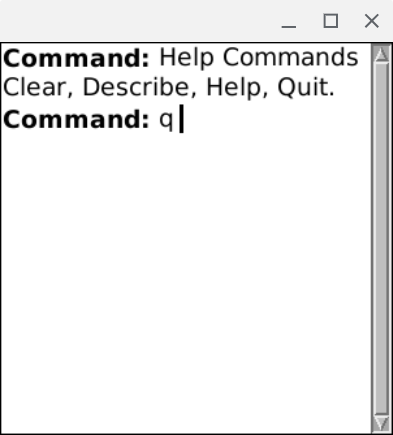

The default interactor is a simple shell (having I guess Help, Describe and Quit). Note that it has autocompletion and emacs-like cut and paste. The autocompletion is used implicitly.

If you are filling out a form, <enter> will set the current field and move to the next one, C-g aborts, and M-<enter> (alt+enter) sends the form.

Cannot simply kill-emacs and leave the form running

• • «after killing emacs» (to “.after killing emacs”)

I guess I would need to start it in another thread in a tricky way. Still, we can easily pop up a gui now. And that *gui* still literally exists in the running ECL lisp image outside of emacs.

Fin.

• • «fin» (to “.fin”)

So the *gui* does not do anything yet, but what we did works and it persists outside of the emacs session.

See you on the Mastodon to talk about this.
